Newtec

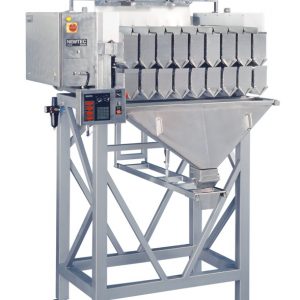

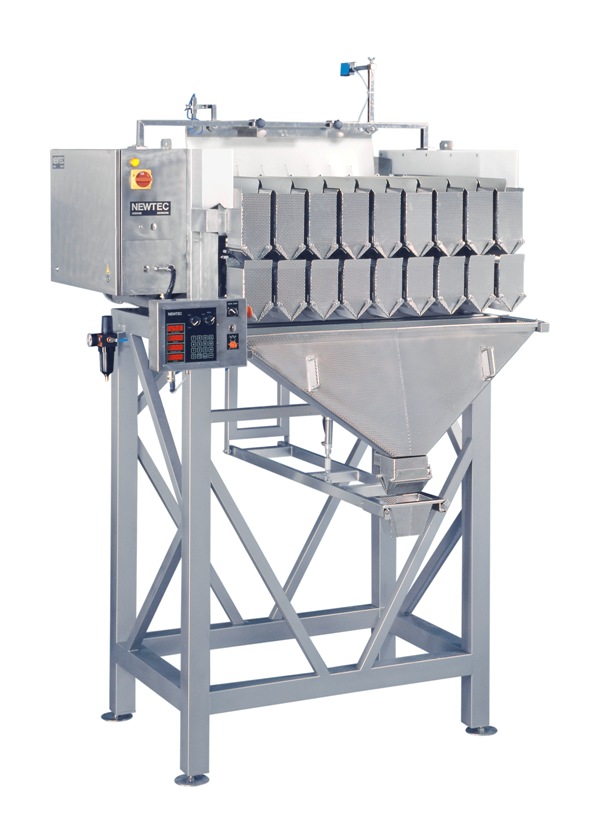

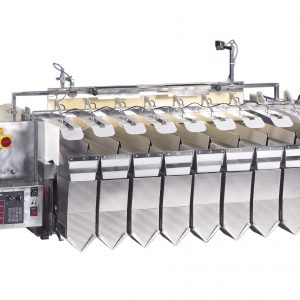

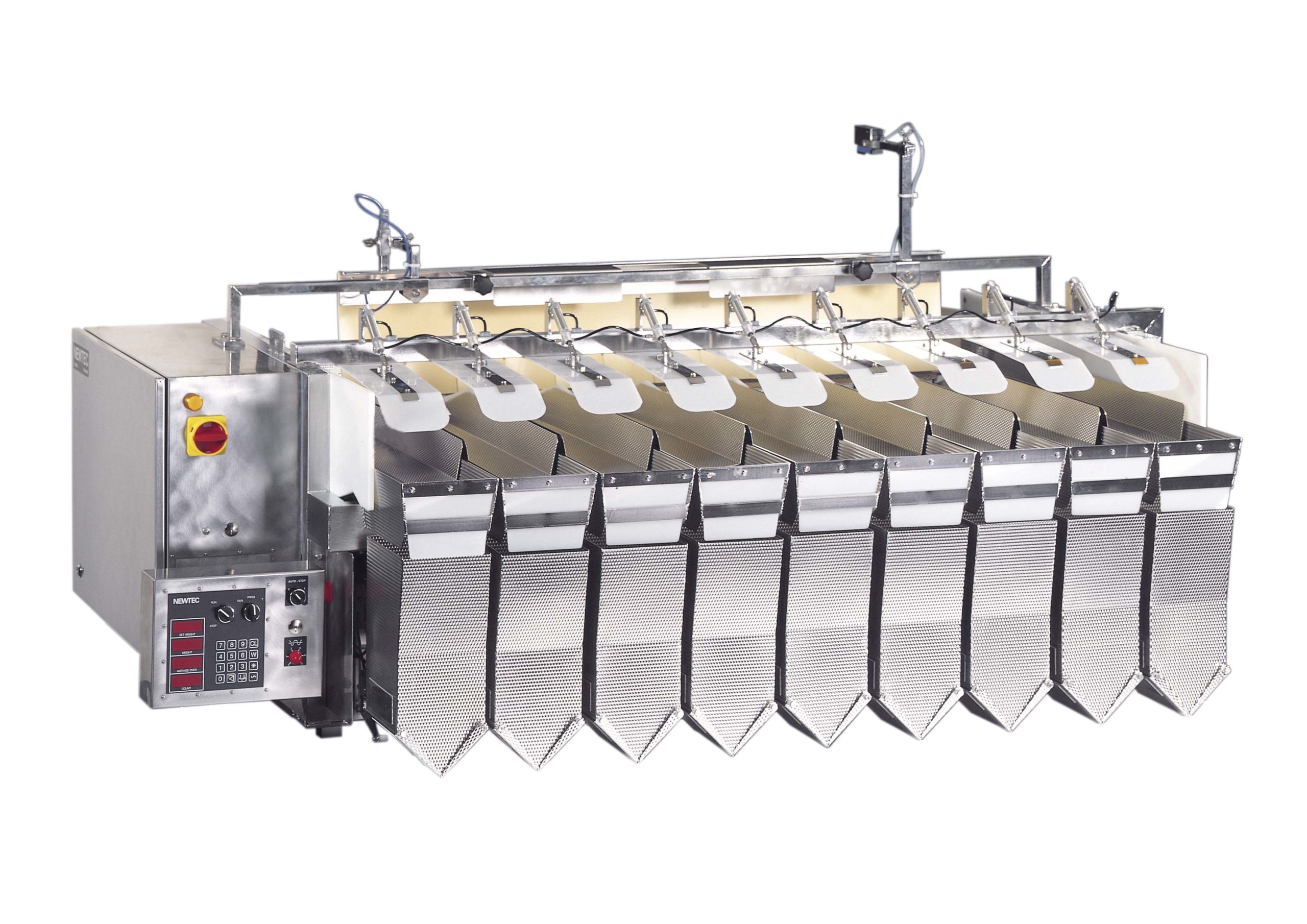

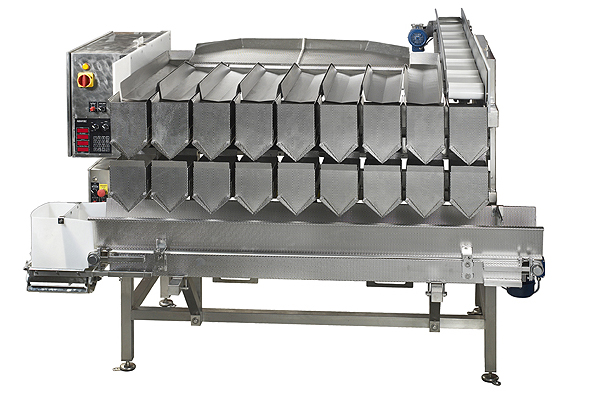

NEWTEC PC SERIES

The Newtec PC Series is engineered for precise weighing and high-speed processing of whole, cut, or peeled products—both fresh and frozen. Available in 9- and 14-head configurations, with standard or wide lanes, it ensures optimal accuracy and efficiency for food production lines.

Manufacturer
Newtec
Function
Weighers

Overview

Key Features and Benefits

  • Unmatched accuracy with a typical giveaway of less than 0.4%
  • High-speed processing with up to 60 packs per minute (2009PC) and 100 packs per minute (2014PC) at 0.25 kg
  • Durable stainless steel build with rigidized surfaces to prevent product bridging and allow full wash-down capability
  • Detachable weigh heads for easy cleaning and maintenance
  • Optimized distribution with vibrator chutes for precise product flow
  • Low-friction surfaces for smooth operation
  • User-friendly software with quick programming options
  • Flexible counting by weight, minimum weight, or average weight programs
  • Capable of running with one or more channels disabled
  • Compatible with fresh and frozen products like fish fillets, shellfish, broccoli, Brussels sprouts, bell peppers, cherries, and nuts
  • Optional Newtec WebServices for remote servicing, data collection, and analysis
  • Optional Newtec MachineLink for centralized control of multiple Newtec machines



Visit Newtec at www.newtec.com for more information.

See all Fox Solutions weighers for advanced weighing and quality control solutions.

Performance & Specifications

NEWTEC PC SERIES specifications
Performance
Speed / Capacity

2009PC: Up to 60 portions/min. at 0,25 kg.
2014PC: Up to 100 portions/min. at 0,25 kg.

Rates depend on the product, bag and machine configuration. Ask us what your line can achieve.
Installation & clearance
Weight

2009PC: 350 kg. (excl. portion collection system)
2014PC: 490 kg. (excl. portion collection system)

Weigh Head Width

102 mm

Utilities
Air Connection Requirement

3/8”

Air Minimum Pressure Requirement

6 bar (0.6 Mpa)

Air Consumption Requirement

25-50 NL/min.

Electrical requirement

3×220 VAC or 3×400 VAC (N)+PE

Other specifications
Portions Sizes

2009PC: 0,25 – 1 kg (depending on the product)
2014PC: 0,25 – 2 kg. (depending on the product)

Weigh Head Volume

2,3 L

Material

According to the EU/FDA rules on food contact materials

Protection class

IP65

Environment

5º C – 40º C
