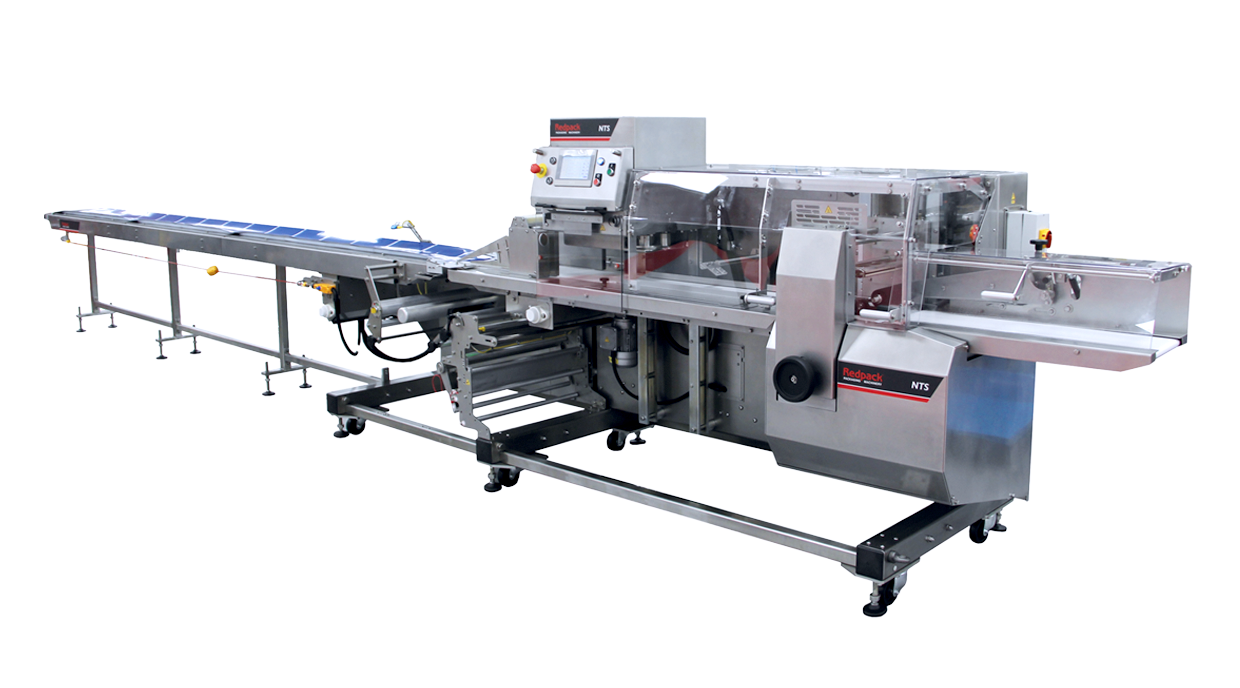

NTS TOP SEAL FOR HERBS WITHOUT TRAY
NTS TOP SEAL FOR HERBS WITHOUT TRAY
Details
Key Features and Benefits
- Precision engineered components housed in a stainless steel fabrication
- 24/7 production capability
- Cantilever design to enhance hygienic cleaning and improve maintenance access
- 50 product settings that automatically change the bag length, print registration, end crimp slow down, in feed position, machine speed, and printed code and label position
- 20 – 250 packs per min.
- Quick release pneumatic reel clamping for fine centering adjustment
- Motorized film holder for constant tension film feed to match the film and seam crimps speed
- Reel run out switch stops the machine when the film runs out
- Hand-wheel adjusted self-centering film fold box for different-sized products
- Three sets of seam crimp rollers: first set cold, second set heated, third set film turnover (or four sets of rollers depending on the application)
- Seam crimp release to prevent film melt when the machine stops
- Rotary end crimp with jaw centers to suit product requirement, knife and anvil with fine adjustment for parallelism
Visit Redpack at www.redpack.co.uk for more information.
See all Fox Solutions equipment for advanced automation in fresh produce packaging.
Works With
Herbs
Details
Key Features and Benefits
- Precision engineered components housed in a stainless steel fabrication
- 24/7 production capability
- Cantilever design to enhance hygienic cleaning and improve maintenance access
- 50 product settings that automatically change the bag length, print registration, end crimp slow down, in feed position, machine speed, and printed code and label position
- 20 – 250 packs per min.
- Quick release pneumatic reel clamping for fine centering adjustment
- Motorized film holder for constant tension film feed to match the film and seam crimps speed
- Reel run out switch stops the machine when the film runs out
- Hand-wheel adjusted self-centering film fold box for different-sized products
- Three sets of seam crimp rollers: first set cold, second set heated, third set film turnover (or four sets of rollers depending on the application)
- Seam crimp release to prevent film melt when the machine stops
- Rotary end crimp with jaw centers to suit product requirement, knife and anvil with fine adjustment for parallelism
Visit Redpack at www.redpack.co.uk for more information.
See all Fox Solutions equipment for advanced automation in fresh produce packaging.
Downloads
Technical Specs
Electrical Requirement
380/440V 50HZ 3Ph N+Earth
Electrical Load
7kVA
Pneumatic Requirement
4 Bar minimum dry air clean
Wrapping Materials
OPP, heat sealing laminates, cold seal
End crimp shaft centre (mm) option
108 126 156 186 201 250
Length (mm)
To suit
Width (mm)
To suit
Height (mm)
To suit. NB. The max bag height is determined by the required bag width!
Reel Diameter (mm)
300 (max)
Core Diameter (mm)
75
Width (mm)
650/850
Machine Speed (ppm)
20-250 (dependant upon application)
Noise Emission (dB)
Less than 70dba at 1m distance. 1.6m
above floor
Approximate Machine Dimensions
Length (m) 4.7
Width (m) 1.1
Height (m) 1.4
Machine Weight (kg) 1000
About Company
Redpack Packaging Machinery designs and manufactures Flow Wrapping and Packaging Machinery. Our markets include industries such as fresh produce, pharmaceuticals, snack foods, household products, bakery, greeting cards, gifts and toys, etc. With a brand stretching back over 35 years our flow wrapping design follows tried and tested techniques. Despite this each application brings its own unique requirements for custom designed features.
